As long as the oxidizing environment permits the production of a passive oxide coating, Nickel 200 Washers offer corrosion resistance in reducing, neutral, and oxidizing fluids as well as in oxidizing atmospheres. The material's exceptional resilience in caustic settings can be attributed to this oxide film. Both coastal environments and rural settings have very low rates of corrosion.

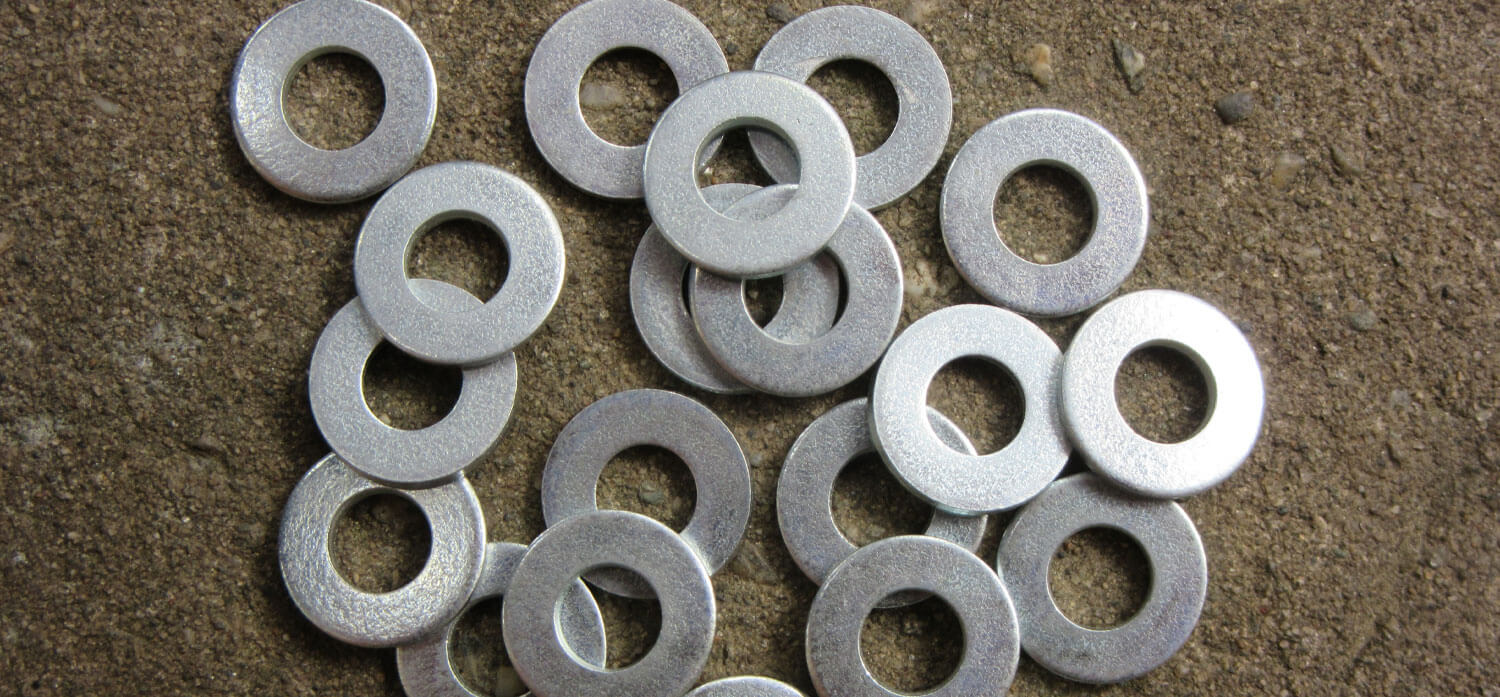

Nickel 200 Washers
Table of Content

Ped Approved Manufacturer of 200 Nickel Alloy Industrial Steel Washers, Nickel Alloy 200 External / Internal Tooth Lock Washers, 200 Nickel Alloy Hex Washers, UNS N02200 Washers, Nickel Alloy 200 Washers, Type 200 Nickel Square Washers At Best Price In India, 200 Nickel Alloy Washers, Nickel Alloy 200 Tab Washer, Nickel Alloy 200 Washers, NW 2200 Washers, 200 Nickel Plain Flat Washers, Nickel 200 Washers, Alloy 200 Washers, Alloy 200 Washers Manufacturers, Nickel Alloy 2.4066 Washers, Nickel Alloy 200 Spring Lock Washers, Nickel Alloy 200 Washers Supplier in Mumbai, India.

Nickel 200 Washers are produced industrially by Zeon Fasteners LLP to industry standards and according to established quality requirements. For a variety of uses across numerous sectors, these Nickel Alloy 200 Washers are widely employed. Alloy 200 Washers have several outstanding characteristics, including best performance, robust creation, high-grade materials, precisely designed, hardiness, durability, and so forth. These nickel UNS N2200 sealing washers are precisely crafted and developed using superior raw materials and advanced technologies. These Nickel UNS N02200 Washers have a long lifespan and require little upkeep. The offered selection of Nickel 200 Washers is offered in a variety of designs and specifications that best suit the various requirements of the customers. These Nickel 200 Spring Washers provide many standout qualities, including strong construction, extreme durability, optimal performance, etc. Additionally, these Nickel 200Washers have high strength, resistance to corrosion, sturdy construction, resistance to corrosion, low maintenance requirements, and precise design. Nickel 200 Washers are produced using high-end materials and cutting-edge technology under the supervision of knowledgeable professionals. It is highly resistant to caustic alkalies and reducing agents because of the 99.6% purity of the nickel. Because it can be welded and has a relatively low hardness, annealed nickel is preferred by machinists. The properties of Nickel 200 Washers make them attractive for use in the food sector, petrochemicals, and various other industrial applications.

Nickel Alloy 200 Washers

Specification For Nickel 200 Washers

Size: M02 to M33 | Custom Sizes.
Length : 3 to 200 mm
Standard: ISO, ASTM, DIN, JIS, IS, GB, BS, and all International Standards
DIN Standard: B.S. DIN 931, DIN 933, DIN 912, DIN 934, DIN 6923, DIN 603, DIN 7981, DIN 970, DIN916, DIN 7982, DIN 7985, DIN 913
Dimensions: ANSI/ASME B18.22.1, B18.22M, B18.21.1, B18.21.1, ASME B18.2.6M
UTS: NPT, UNS, UNF, UNC, UNEF, NPTF
ISO: ISO 4033, ISO 4032, ISO 7380, ISO 4017, JIS standards
Threads : METRIC, BSW, UNC, UNF, BSF or as required
Types: Lock Washer, Flat Washer, Split Washer, Sealing Washer, Machine Washer, Slot Washer, Star Washer Springs – Flat Spring & Wire Spring
Certification: Dual Certified As per ASTM & ASME Codes

Equivalent Grades Of Nickel Alloy 200 Washers

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Nickel Alloy 200 2.4066 N02200 NW 2200 NA 11 НП-2 N-100M Ni 99.2

200 Nickel Washers Chemical Composition

Grade C Mn Si S Cu Fe Ni
Nickel 200 0.15 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min

Nickel Alloy 200 Washers Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 200 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %

Nickel Alloy 200 Washer Dimension Chart

Size USS SAE
Inside Diameter
(A)		 Outside Diameter
(B)		 Thickness
(C)		 Inside Diameter
(A)		 Outside Diameter
(B)		 Thickness
(C)
#2 – – – 3/32″ 1/4″ 0.020″
#4 – – – 1/8″ 5/16″ 0.032″
#6 – – – 5/32″ 3/8″ 0.049″
#8 – – – 3/16″ 7/16″ 0.049″
#10 – – – 7/32″ 1/2″ 0.049″
#12 – – – 1/4″ 9/16″ 0.065″
1″ 1-1/16″ 2-1/2″ 0.165″ 1-1/16″ 2″ 0.134″
1/2″ 9/16″ 1-3/8″ 0.109″ 17/32″ 1-1/16″ 0.095″
1/4″ 5/16″ 0.734″ 0.065″ 9/32″ 5/8″ 0.065″
1-1/2″ 1-5/8″ 3-1/2″ 0.180″ – – –
1-1/4″ 1-3/8″ 3″ 0.165″ – – –
1-1/8″ 1-1/4″ 2-3/4″ 0.165″ – – –
1-3/4″ 1-7/8″ 4″ 0.180″ – – –
1-3/8″ 1-1/2″ 3-1/4″ 0.180″ – – –
1-5/8″ 1-3/4″ 3-3/4″ 0.180″ – – –
2″ 2-1/8″ 4-1/2″ 0.213″ – – –
3/4″ 13/16″ 2″ 0.148″ 13/16″ 1-15/32″ 0.134″
3/8″ 7/16″ 1″ 0.083″ 13/32″ 13/16″ 0.065″
5/8″ 11/16″ 1-3/4″ 0.134″ 21/32″ 1-5/16″ 0.095″
5/16″ 3/8″ 7/8″ 0.083″ 11/32″ 11/16″ 0.065″
7/8″ 15/16″ 2-1/4″ 0.165″ 15/16″ 1-3/4″ 0.134″
7/16″ 1/2″ 1-1/4″ 0.083″ 15/32″ 15/16″ 0.065″
9/16″ 5/8″ 1-15/32″ 0.109″ 19/32″ 1-5/32″ 0.095″

Nickel Alloy 200 Spring Washer Dimensions

NOM SIZE Inner Dia (d) Basic Tol (+) Outer Dia (d1) Max WIDTH (b) Basic Tol (+ or -) THICKNESS (S) Basic Tol (+ or -) Weight per 1000 in Kgs
3 3.1 0.3 6.2 1.3 0.1 0.8 0.1 0.11
4 4.1 0.3 7.6 1.5 0.1 0.9 0.1 0.18
5 5.1 0.3 9.2 1.8 0.1 1.2 0.1 0.36
6 6.1 0.4 11.8 2.5 0.15 1.6 0.1 0.83
8 8.1 0.4 14.8 3 0.15 2 0.1 1.60
10 10.2 0.5 18.1 3.5 0.2 2.2 0.15 2.53
12 12.2 0.5 21.1 4 0.2 2.5 0.15 3.82
14 14.2 0.5 24.1 4.5 0.2 3 0.15 6.01
16 16.2 0.8 27.4 5 0.2 3.5 0.2 8.91
18 18.2 0.8 29.4 5 0.2 3.5 0.2 9.73
20 20.2 1 33.6 6 0.2 4 0.2 15.20
22 22.5 1 35.9 6 0.2 4 0.2 16.50
24 24.5 1 40 7 0.25 5 0.2 26.20
27 27.5 1 43 7 0.25 5 0.2 28.70
30 30.5 1.2 48.2 8 0.25 6 0.2 44.30
33 33.5 1.2 55.2 10 0.25 6 0.2 63.00
36 36.5 1.2 58.2 10 0.25 6 0.2 67.30
39 39.5 1.2 61.2 10 0.25 6 0.2 71.70
42 42.5 1.2 68.2 12 0.25 7 0.25 111.00
45 45.5 1.2 71.2 12 0.25 7 0.25 117.00
48 49 1.5 75 12 0.25 7 0.25 123.00
52 53 1.5 83 14 0.25 8 0.25 320.00

Nickel Alloy 200 Flat Washer Dimension

Bolt Size USS SAE
OD (in.) ID (in.) Thickness OD (in.) ID (in.) Thickness
1
2.500
1.062
.136/.192
2.000
1.062
.108/.160
1/2
1.375
0.562
.086/.132
1.062
0.531
.074/.121
1/4 (#14)
0.734
0.312
.051/.080
0.625
0.281
.051/.080
1/8 (#6)
–
–
–
0.375
0.156
.036/.065
2
4.500
2.125
.153/.213
–
–
–
3
5.500
3.125
.249/.327
–
–
–
3/4
2.000
0.812
.122/.177
1.469
0.812
.108/.160
3/8
1.000
0.438
.064/.104
0.812
0.406
.051/.080
3/16 (#10)
0.560
0.250
.036/.065
0.500
0.220
.036/.065
5/8
1.750
0.688
.108/.160
1.312
0.656
.074/.121
5/16
0.875
0.375
.064/.104
0.688
0.344
.051/.080
5/32 (#8)
–
–
–
0.438
0.188
.036/.065
7/8
2.250
0.938
.136/.192
1.750
0.938
.108/.160
7/16
1.250
0.500
.064/.104
0.922
0.469
.051/.080
7/32 (#12)
–
–
–
0.562
0.250
.051/.080
9/16
1.469
0.625
.086/.132
1.156
0.594
.074/.121
1 1/2
3.500
1.625
.153/.213
3.000
1.625
.153/.213
1 1/4
3.000
1.375
.136/.192
2.500
1.375
.136/.192
1 1/8
2.750
1.250
.136/.192
2.250
1.250
.108/.160
1 3/4
4.000
1.875
.153/.213
–
–
–
1 3/8
3.250
1.500
.153/.213
2.750
1.500
.136/.213
1 5/8
3.750
1.750
.153/.213
–
–
–
1 7/8
4.250
2.000
.153/.213
–
–
–
2 1/2
5.000
2.625
.210/.280
–
–
–
2 1/4
4.750
2.375
.320/.248
–
–
–
2 3/4
5.250
2.875
.228/.410S
–
–
–

International Standard For 200 Nickel Alloy Washers

Standard Description
AS 1237.1-2002 Plain washers
AS 1237.1-2002 Small plain washers
ASTM F436-2010 Extra Thick clipped washers
ASTM F436M-2010 Clipped washers
ANSI B18.2.6-2003 Steel Circular clipped washers
ANSI B18.22.1A-1981 Type A Plain washers
ANSI B18.22.1B-1981 Type B Plain washers
ANSI B18.22.1A-1965 Type A Plain washers
ANSI B18.22.1B-1965 Type B Plain washers
DIN 125-2 Type A washers
DIN 125-2 Type B washers

Various Types of Nickel Alloy 200 Washers

Nickel Alloy 200 Plain Flat Washers

Nickel Alloy 200 Plain Flat Washers

  • 200 Nickel Alloy Flat Washers
  • Alloy 200 Plain Washer
  • UNS N02200 Flat Washers
  • Nickel Alloy N02200 Plain Washers
  • Nickel 200 Plain Washers
  • Nickel Alloy 200 Plain Washers
  • Nickel Alloy 2.4066 Plain Washer
Nickel Alloy 200 Spring Lock Washers

Nickel Alloy 200 Spring Lock Washers

  • Alloy 200 Spring Lock Washers
  • Nickel Alloy 200 Helical Spring Lock Washer
  • 200 Nickel Alloy Spring Lock Washers
  • Nickel 200 Spring Lock Washers
  • UNS N02200 Spring Lock Washers
  • Nickel Alloy 2.4066 Spring Lock Washers
Nickel Alloy 200 Square Washers

Nickel Alloy 200 Square Washers

  • 200 Nickel Alloy Square Plate Washer
  • Nickel 200 Square Washers
  • Alloy 200 Square Washers
  • Nickel Alloy N02200 Square Washers
  • Nickel Alloy 2.4066 Square Washer
  • UNS N02200 Square Washers
  • Nickel Alloy 200 Flat Square Washer
Nickel Alloy 200 Hex Washers

Nickel Alloy 200 Hex Washers

  • Nickel Alloy 2.4066 Hex Washer
  • Nickel Alloy 200 Hexagonal Washers
  • 200 Nickel Hex Washers
  • Nickel Alloy N02200 Hex Washers
  • Nickel 200 Hexagonal Washer
  • Alloy 200 Hex Washers
  • UNS N02200 Hex Washers
Nickel Alloy 200 Conical Spring Washers

Nickel Alloy 200 Conical Spring Washers

  • UNS N02200 Conical Spring Washers
  • Nickel 200 Conical Spring Washers
  • Alloy 200 Conical Spring Washers
  • Nickel Alloy N02200 Conical Spring Washers
Nickel Alloy 200 Fender Washers

Nickel Alloy 200 Fender Washers

  • Nickel Alloy 200 Heavy Fender Washers
  • 200 Nickel Extra Thick Fender Washer
  • UNS N02200 Fender Washers
  • Nickel 200 Fender Washers
  • Nickel Alloy N02200 Fender Washers
  • Alloy 200 Fender Washers

Contact us to get a quick quote for your requirement.

We offer These Nickel Alloy 200 Washers as per DIN, ISO, JIS or ANSI Standard.
