What are Monel Washers?

Monel Washers. are nickel-copper alloy fasteners having a copper content of 29-33 percent. It has great corrosion resistance to acids and alkalis, as well as good mechanical properties and ductility. Despite their difficulty in processing, Monel Fasteners may be hardened and come in a variety of grades such as Monel 400, Monel 500, and so on. Monel 500 includes aluminum and titanium additives, which increase the robustness of model 400.

Types of Monel Washers:

Monel K500 and K500 grades are the most frequent grade of Monel washers. Monel washers, such as Monel 400 and K500, are constructed of a Ni-Cu alloy and have outstanding strength, hardness, and resistant to corrosion through a wide temperature range. Monel washers are notable for their excellent resistance to hydrofluoric acid, a very tough chemical to work with, in all congregations up to the boiling point.

Monel washers are among the most resistant specialty alloys used in hydrofluoric acid applications. Monel alloy K500 and 400 washers are also aversive to sulfuric and hydrochloric acids under decreasing circumstances and have high resistance to corrosion in maritime applications.

Uses of Monel washers:

Monel Washers are aversive to a wide range of corrosive conditions as well as are capable of keeping the beneficial aspects when faced with tremendously high or low temperatures. Monel washers are especially used in aerospace, petroleum drilling, and processing. Monel washers are commonly used in maritime and chemical processing industries because of their properties.

Monel External / Internal Tooth Lock Washers, Monel Spring Lock Washers, Monel Washers Manufacturers, Ped Approved Manufacturer of Monel Industrial Steel Washers, Monel Hex Washers, Type Monel Alloy Square Washers At Best Price In India, Monel® Alloy Washer, Monel Alloy Plain Flat Washers, Monel Washers, Monel Alloy Washers, Monel Tab Washer, Monel Washers Supplier in Mumbai, India.

Zeon Fasteners LLP is one of the leading manufacturers and exporters of Monel Washers. We provide a large-scale market for Monel Washers, that has nice weldability by all standard procedures. A washer is a flat disc that has an opening in the center and this small piece divides the fastener’s load equally on the surface of the material.

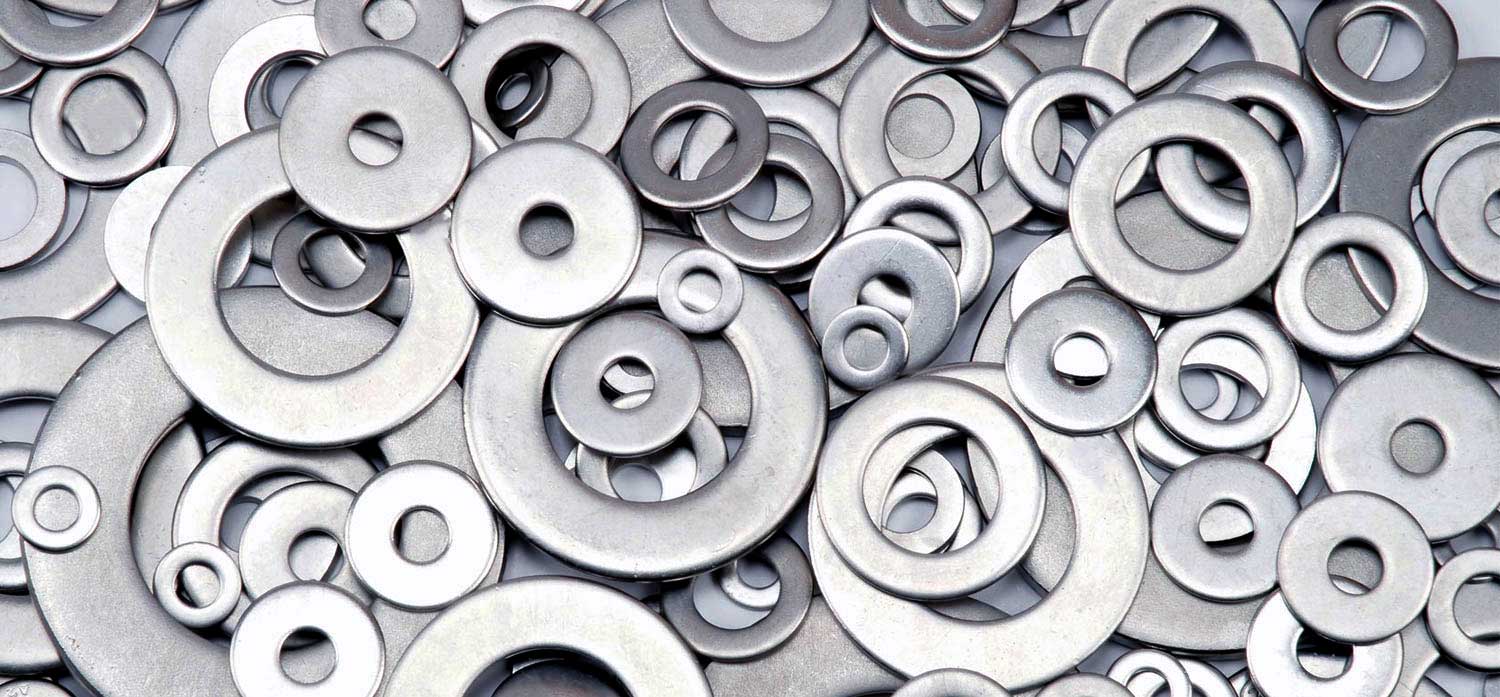

Monel Washers

Specification For Monel Alloy Washers

Size: M02 to M33 | Custom Sizes.
Length : 3 to 200 mm
Standard: ISO, ASTM, DIN, JIS, IS, GB, BS, and all International Standards
DIN Standard: B.S. DIN 931, DIN 933, DIN 912, DIN 934, DIN 6923, DIN 603, DIN 7981, DIN 970, DIN916, DIN 7982, DIN 7985, DIN 913
Dimensions: ANSI/ASME B18.22.1, B18.22M, B18.21.1, B18.21.1, ASME B18.2.6M
UTS: NPT, UNS, UNF, UNC, UNEF, NPTF
ISO: ISO 4033, ISO 4032, ISO 7380, ISO 4017, JIS standards
Threads : METRIC, BSW, UNC, UNF, BSF or as required
Types: Lock Washer, Flat Washer, Split Washer, Sealing Washer, Machine Washer, Slot Washer, Star Washer Springs – Flat Spring & Wire Spring
Certification: Dual Certified As per ASTM & ASME Codes

Monel Washer Dimension Chart

Size USS SAE
Inside Diameter
(A)
Outside Diameter
(B)
Thickness
(C)
Inside Diameter
(A)
Outside Diameter
(B)
Thickness
(C)
#2 3/32″ 1/4″ 0.020″
#4 1/8″ 5/16″ 0.032″
#6 5/32″ 3/8″ 0.049″
#8 3/16″ 7/16″ 0.049″
#10 7/32″ 1/2″ 0.049″
#12 1/4″ 9/16″ 0.065″
1″ 1-1/16″ 2-1/2″ 0.165″ 1-1/16″ 2″ 0.134″
1/2″ 9/16″ 1-3/8″ 0.109″ 17/32″ 1-1/16″ 0.095″
1/4″ 5/16″ 0.734″ 0.065″ 9/32″ 5/8″ 0.065″
1-1/2″ 1-5/8″ 3-1/2″ 0.180″
1-1/4″ 1-3/8″ 3″ 0.165″
1-1/8″ 1-1/4″ 2-3/4″ 0.165″
1-3/4″ 1-7/8″ 4″ 0.180″
1-3/8″ 1-1/2″ 3-1/4″ 0.180″
1-5/8″ 1-3/4″ 3-3/4″ 0.180″
2″ 2-1/8″ 4-1/2″ 0.213″
3/4″ 13/16″ 2″ 0.148″ 13/16″ 1-15/32″ 0.134″
3/8″ 7/16″ 1″ 0.083″ 13/32″ 13/16″ 0.065″
5/8″ 11/16″ 1-3/4″ 0.134″ 21/32″ 1-5/16″ 0.095″
5/16″ 3/8″ 7/8″ 0.083″ 11/32″ 11/16″ 0.065″
7/8″ 15/16″ 2-1/4″ 0.165″ 15/16″ 1-3/4″ 0.134″
7/16″ 1/2″ 1-1/4″ 0.083″ 15/32″ 15/16″ 0.065″
9/16″ 5/8″ 1-15/32″ 0.109″ 19/32″ 1-5/32″ 0.095″

Monel Spring Washer Dimensions

NOM SIZE Inner Dia (d) Basic Tol (+) Outer Dia (d1) Max WIDTH (b) Basic Tol (+ or -) THICKNESS (S) Basic Tol (+ or -) Weight per 1000 in Kgs
3 3.1 0.3 6.2 1.3 0.1 0.8 0.1 0.11
4 4.1 0.3 7.6 1.5 0.1 0.9 0.1 0.18
5 5.1 0.3 9.2 1.8 0.1 1.2 0.1 0.36
6 6.1 0.4 11.8 2.5 0.15 1.6 0.1 0.83
8 8.1 0.4 14.8 3 0.15 2 0.1 1.60
10 10.2 0.5 18.1 3.5 0.2 2.2 0.15 2.53
12 12.2 0.5 21.1 4 0.2 2.5 0.15 3.82
14 14.2 0.5 24.1 4.5 0.2 3 0.15 6.01
16 16.2 0.8 27.4 5 0.2 3.5 0.2 8.91
18 18.2 0.8 29.4 5 0.2 3.5 0.2 9.73
20 20.2 1 33.6 6 0.2 4 0.2 15.20
22 22.5 1 35.9 6 0.2 4 0.2 16.50
24 24.5 1 40 7 0.25 5 0.2 26.20
27 27.5 1 43 7 0.25 5 0.2 28.70
30 30.5 1.2 48.2 8 0.25 6 0.2 44.30
33 33.5 1.2 55.2 10 0.25 6 0.2 63.00
36 36.5 1.2 58.2 10 0.25 6 0.2 67.30
39 39.5 1.2 61.2 10 0.25 6 0.2 71.70
42 42.5 1.2 68.2 12 0.25 7 0.25 111.00
45 45.5 1.2 71.2 12 0.25 7 0.25 117.00
48 49 1.5 75 12 0.25 7 0.25 123.00
52 53 1.5 83 14 0.25 8 0.25 320.00

Monel Flat Washer Dimension

Bolt Size USS SAE
OD (in.) ID (in.) Thickness OD (in.) ID (in.) Thickness
1
2.500
1.062
.136/.192
2.000
1.062
.108/.160
1/2
1.375
0.562
.086/.132
1.062
0.531
.074/.121
1/4 (#14)
0.734
0.312
.051/.080
0.625
0.281
.051/.080
1/8 (#6)
0.375
0.156
.036/.065
2
4.500
2.125
.153/.213
3
5.500
3.125
.249/.327
3/4
2.000
0.812
.122/.177
1.469
0.812
.108/.160
3/8
1.000
0.438
.064/.104
0.812
0.406
.051/.080
3/16 (#10)
0.560
0.250
.036/.065
0.500
0.220
.036/.065
5/8
1.750
0.688
.108/.160
1.312
0.656
.074/.121
5/16
0.875
0.375
.064/.104
0.688
0.344
.051/.080
5/32 (#8)
0.438
0.188
.036/.065
7/8
2.250
0.938
.136/.192
1.750
0.938
.108/.160
7/16
1.250
0.500
.064/.104
0.922
0.469
.051/.080
7/32 (#12)
0.562
0.250
.051/.080
9/16
1.469
0.625
.086/.132
1.156
0.594
.074/.121
1 1/2
3.500
1.625
.153/.213
3.000
1.625
.153/.213
1 1/4
3.000
1.375
.136/.192
2.500
1.375
.136/.192
1 1/8
2.750
1.250
.136/.192
2.250
1.250
.108/.160
1 3/4
4.000
1.875
.153/.213
1 3/8
3.250
1.500
.153/.213
2.750
1.500
.136/.213
1 5/8
3.750
1.750
.153/.213
1 7/8
4.250
2.000
.153/.213
2 1/2
5.000
2.625
.210/.280
2 1/4
4.750
2.375
.320/.248
2 3/4
5.250
2.875
.228/.410S

International Standard For Monel Washers

Standard Description
AS 1237.1-2002 Plain washers
AS 1237.1-2002 Small plain washers
ASTM F436-2010 Extra Thick clipped washers
ASTM F436M-2010 Clipped washers
ANSI B18.2.6-2003 Steel Circular clipped washers
ANSI B18.22.1A-1981 Type A Plain washers
ANSI B18.22.1B-1981 Type B Plain washers
ANSI B18.22.1A-1965 Type A Plain washers
ANSI B18.22.1B-1965 Type B Plain washers
DIN 125-2 Type A washers
DIN 125-2 Type B washers

Various Types of Monel Washers

Monel Plain Flat Washers

Monel Plain Flat Washers

  • Monel® Alloy Flat Washers
  • Monel Alloy Flat Washers
  • Monel Plain Washers
  • Monel Alloy Plain Washers
  • Monel Flat Washers
Monel Spring Lock Washers

Monel Spring Lock Washers

  • Monel® Alloy Spring Lock Washers
  • Monel Alloy Spring Lock Washers
  • Monel Helical Spring Lock Washer
Monel Square Washers

Monel Square Washers

  • Monel Alloy Square Washers
  • Monel Flat Square Washer
  • Monel Square Plate Washer
Monel Hex Washers

Monel Hex Washers

  • Monel® Alloy Hex Washers
  • Monel Alloy Hexagonal Washer
  • Monel Hexagonal Washers
  • Monel Alloy Hex Washers
Monel Conical Spring Washers

Monel Conical Spring Washers

  • Monel Alloy Conical Spring Washers
  • Monel Conical Spring Washers
  • Monel® Alloy Conical Spring Washer
Monel Fender Washers

Monel Fender Washers

  • Monel Heavy Fender Washers
  • Monel® Alloy Fender Washers
  • Monel Alloy Extra Thick Fender Washer
  • Monel Alloy Fender Washers

Contact us to get a quick quote for your requirement.

We offer These Monel Washers as per DIN, ISO, JIS or ANSI Standard.

Ready Stock Of Monel Washers

  • Monel Spring Washers
  • Monel Carriage Washers
  • Monel Alloy Metric Slotted Hex Washer
  • Monel Industrial Washers
  • Monel Metric Serrated Lock Washers
  • Monel Alloy Belleville Washers
  • Monel Star Washer
  • Monel Ogee Washers
  • Monel Contact Washers
  • Monel Alloy Dock Washers
  • Monel Alloy Washers Sized in Inches
  • Type Monel Washer Grades Chart Pdf
  • Monel Bonded Sealing Washers
  • Monel Alloy Sealing Washer
  • Monel Internal Tooth Lock Washers
  • Monel External Tooth Lock Washer
  • Monel Alloy High Collar lock Washers
  • Monel Alloy Metric Flat Washers
  • Monel Alloy Round Wave Washers

Monel Washers Applications and Uses

We Serve Application Industry

Chemical Industry
Petrochemical Industry
Oil & Gas Industry
Marine Industry
Power Generation Industry
Sugar Industry
Marine Industry
Pharmaceuticals Industry
Cement Industry
Dairy Industry
Food Processing Industry
Paper & Pulp Industry
Offshore & Onshore Services

Chemical Industry Oil and Gas Industry Petrochemical Industry Power Generation Industry Cement Industry Food Processing Industry
