Duplex 2205 threaded rod contains chromium, nickel, and molybdenum with restricted carbon content and is the dual-phase austenitic-ferritic duplex rod. The rod, which is also known as a stud, features a threaded section at each end. The rod can be custom-made and is available in a wide range of lengths and diameters. The only difference between these rods and bolts is their length. The threaded portion of the rod exerts considerable pressure on the surface that needs to be attached. As a result, it is frequently utilized in situations where the two components of the machine need to be fixed tightly.

These Duplex 2205 Threaded Rods are used in the building of bridges or other structures. Additionally, they are utilized in the marine industry and in equipment used in petroleum refineries. Also, it is utilized in the production of aircraft and food processing components. As a result of their enhanced corrosion resistance, they can be used in situations where stress corrosion cracking, crevice corrosion, pitting, erosion, and general corrosion are all common. This is why it is frequently used in equipment for petrochemicals, chemical processing, and seawater. Above temperatures of 600 degrees, it cannot be used. Additionally, the austenitic iron in Duplex 2205 Threaded Rod is heat-resistant, titanium-stabilized, and frequently utilized for service at higher temperatures.

2205 DSS Threaded Rods Stockist
Table of Content

Duplex Steel 2205 Threaded Rods, UNS S32205 Threaded Rods, DSS 2205 Threaded Rods, 2205 Duplex Steel Threaded Rod, Duplex 2205 Fully Threaded Rods Manufacturers, Duplex Steel 2205 Threaded Bars, Duplex Stainless Steel 2205 Threaded Rods, Ped Approved Manufacturer of 2205 Duplex Steel Threaded Rods, Duplex Steel 1.4462 Threaded Rods, 2205 Duplex Threaded Rods At Best Price In India, DSS 2205 Partially Threaded Rods, Duplex 2205 Threaded Rod Supplier in Mumbai, India.

High corrosion resistance, high strength, temperature resistance, and a smooth surface are all features of the duplex 2205 threaded rods The Threaded Rod's austenitic structure also provides outstanding toughness, especially at low temperatures. It has excellent corrosion resistance and good strength. Zeon Fasteners LLP is the eminent duplex 2205 threaded rod supplier in India.

Its applications of Duplex 2205 threaded rod:-
• Petrochemicals
• Power generation
• Replacement parts
• Gas processing
• Heat exchangers
• Aircraft exhaust manifolds
• Pharmaceutical equipment etc.

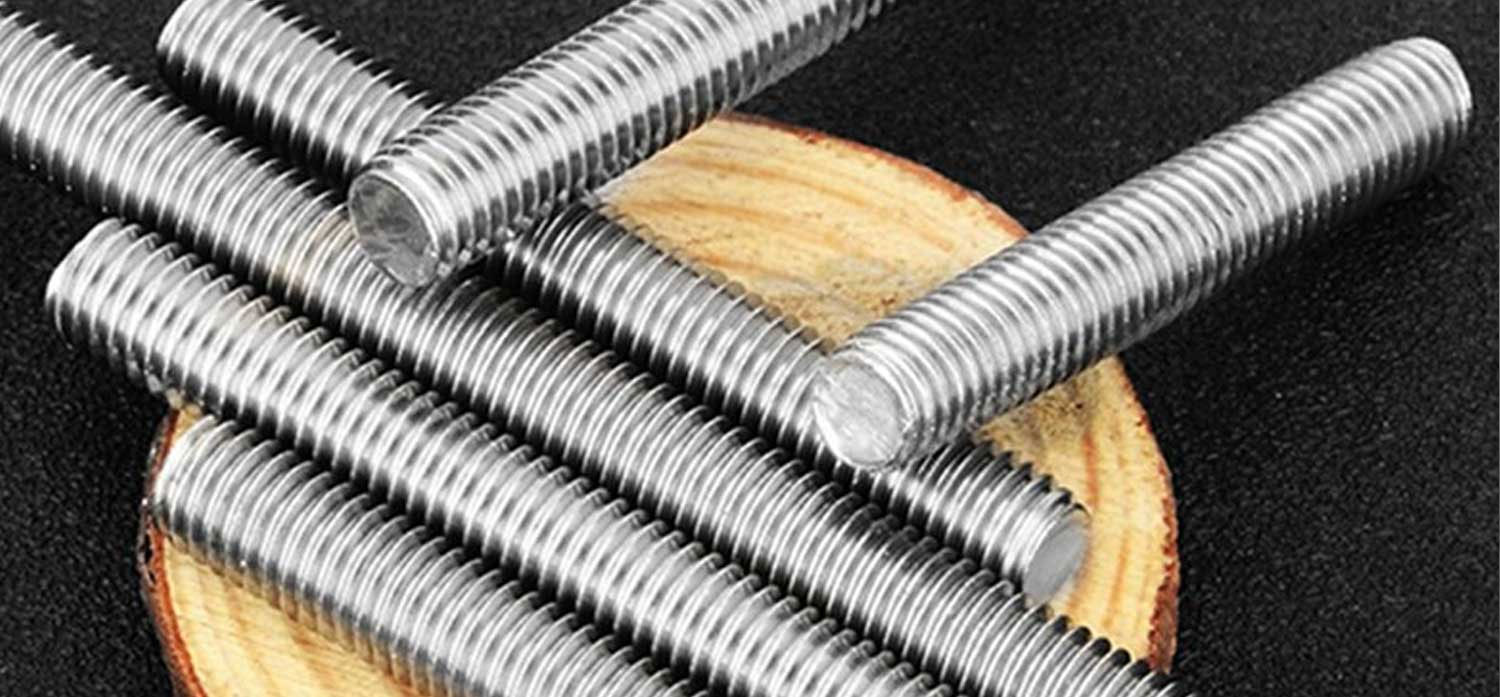

Duplex Steel 2205 Threaded Rods

Specification For DSS 2205 Threaded Rods

Standard: ASTM F593
Dimension : ASTM, DIN, BS, GB, IS and all International Standards
Size : M6 to M52 & 1/4" to 2"
Dimensions : ASME B18.31.3, ASME B18.31.4M
Length : 1000mm to 3000mm & 1feet to 12 feet
Standard : DIN 975 or DIN 976, DIN 938
Unified Thread Standard (UTS): UNC, UNF, NPT, UNS, UNEF, NPTF
Threads Configuration : B1.13M 6h Metric Coarse Threads and ASME B1.1 2A/3A Inch Unified Threads
Stud Bolts Forming: Hot Forged Threaded Rods & Cold Forged Threaded Rods
Certification: Dual Certified As per ASTM & ASME Codes
Finish: Zinc Plated, Plain, Hot Dip Galv. & Yellow Zinc

Equivalent Grades Of Duplex Steel 2205 Threaded Rods

STANDARD UNS WERKSTOFF NR.
Duplex 2205 S32205 1.4462

ASTM F593 2205 Duplex Threaded Rods Chemical Composition

Grade C Mn Si P S Cr Mo Ni N Fe
2205 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 21.0 – 23.0 2.50 – 3.50 4.50 – 6.50 0.8 – 0.20 63.54 min

Duplex Steel 2205 Threaded Rods Mechanical Properties

Grade Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
2205 7.805 0.285 1420 – 1465 2588 – 2669

Dimensions Chart of Duplex Steel 2205 Threaded Rods

Size (MM) Weight per Meter Size (UNC) Weight per Mtr
M2 0.0187
M2.5 0.030
M3 0.044
M3.5 0.060
M4 0.078
M5 0.124
M6 0.177 ¼” 0.194
M8 0.319 5/16” 0.323
M10 0.500 3/8” 0.469
    7/16” 0.650
M12 0.725 ½” 0.896
M14 0.970 9/16” 1.096
M16 1.330 5/8” 1.342
M18 1.650
M20 2.080 ¾” 2.021
M22 2.540 7/8” 2.756
M24 3.000 1” 3.638
M27 3.850 1 1/8” 4.545
M30 4.750 1 ¼” 5.718
M33 5.900 1 3/8” 6.842
M36 6.900 1 ½” 8.281
M39 8.200 1 5/8” 9.726
M42 9.400 1 ¾” 11.231
M45 11.000 1 7/8” 13.038
M48 12.400 2 14.741

LENGTH Diameter
1/2" 5/8" 3/4" 7/8" 1" 1.1/8" 1.1/4" 1.3/8" 1.1/2" 1.5/8" 1.3/4" 1.7/8" 2"
50 mm 0.044 0.069 0.100 0.136 0.178 0.225 0.296 0.356 0.422 0.493 0.570 0.681 0.771
55 mm 0.049 0.076 0.110 0.150 0.195 0.247 0.326 0.392 0.464 0.543 0.627 0.749 0.848
60 mm 0.053 0.083 0.120 0.163 0.213 0.270 0.355 0.428 0.506 0.592 0.684 0.817 0.925
65 mm 0.058 0.090 0.130 0.177 0.231 0.292 0.385 0.463 0.549 0.641 0.741 0.885 1.002
70 mm 0.062 0.097 0.140 0.190 0.249 0.315 0.415 0.499 0.591 0.690 0.798 0.953 1.079
75 mm 0.067 0.104 0.150 0.204 0.266 0.337 0.444 0.535 0.633 0.740 0.855 1.021 1.156
80 mm 0.071 0.111 0.160 0.218 0.284 0.360 0.474 0.570 0.675 0.789 0.912 1.089 1.233
85 mm 0.075 0.118 0.170 0.231 0.302 0.382 0.504 0.606 0.717 0.838 0.969 1.158 1.310
90 mm 0.080 0.125 0.180 0.245 0.320 0.404 0.533 0.641 0.760 0.888 1.026 1.226 1.387
95 mm 0.084 0.132 0.190 0.258 0.337 0.427 0.563 0.677 0.802 0.937 1.083 1.294 1.464
100 mm 0.089 0.139 0.200 0.272 0.355 0.449 0.592 0.713 0.844 0.986 1.140 1.362 1.541
110 mm 0.098 0.153 0.220 0.299 0.391 0.494 0.652 0.784 0.928 1.085 1.254 1.498 1.695
120 mm 0.107 0.166 0.240 0.326 0.426 0.539 0.711 0.855 1.013 1.184 1.388 1.634 1.850
125 mm 0.111 0.173 0.250 0.340 0.444 0.562 0.741 0.891 1.055 1.233 1.425 1.702 1.927
130 mm 0.115 0.180 0.260 0.353 0.462 0.584 0.770 0.926 1.097 1.282 1.482 1.770 2.004
140 mm 0.124 0.194 0.280 0.381 0.497 0.628 0.829 0.998 1.182 1.381 1.596 1.907 2.158
150 mm 0.133 0.208 0.300 0.408 0.533 0.674 0.889 1.069 1.266 1.480 1.710 2.043 2.312
160 mm 0.142 0.222 0.320 0.435 0.568 0.719 0.948 1.140 1.350 1.578 1.824 2.179 2.466
170 mm 0.151 0.236 0.340 0.462 0.604 0.764 1.007 1.212 1.435 1.677 1.938 2.315 2.620
175 mm 0.155 0.243 0.350 0.476 0.621 0.786 1.037 1.247 1.477 1.726 1.995 2.383 2.697
180 mm 0.160 0.250 0.360 0.489 0.639 0.809 1.066 1.283 1.519 1.776 2.052 2.451 2.774
190 mm 0.169 0.264 0.380 0.517 0.675 0.854 1.126 1.354 1.604 1.874 2.166 2.588 2.928
200 mm 0.178 0.277 0.399 0.544 0.710 0.899 1.185 1.425 1.688 1.973 2.280 2.724 3.083
210 mm 0.186 0.291 0.419 0.571 0.746 0.944 1.244 1.497 1.772 2.071 2.394 2.860 3.237
220 mm 0.195 0.305 0.439 0.596 0.781 0.989 1.303 1.568 1.857 2.170 2.508 2.996 3.391
225 mm 0.200 0.312 0.449 0.612 0.799 1.011 1.333 1.604 1.899 2.219 2.565 3.064 3.468
230 mm 0.204 0.319 0.459 0.625 0.817 1.034 1.363 1.639 1.941 2.269 2.622 3.132 3.545
240 mm 0.213 0.333 0.479 0.653 0.852 1.079 1.422 1.710 2.026 2.367 2.736 3.268 3.699
250 mm 0.222 0.347 0.499 0.680 0.888 1.124 1.481 1.782 2.110 2.466 2.850 3.405 3.853
260 mm 0.231 0.361 0.519 0.707 0.923 1.169 1.540 1.853 2.194 2.565 2.964 3.541 4.007
270 mm 0.240 0.375 0.539 0.734 0.959 1.213 1.600 1.924 2.279 2.663 3.078 3.677 4.161
275 mm 0.244 0.382 0.549 0.748 0.977 1.236 1.629 1.960 2.321 2.713 3.135 3.745 4.238
280 mm 0.249 0.388 0.559 0.761 0.994 1.258 1.659 1.995 2.363 2.762 3.192 3.813 4.316
290 mm 0.257 0.402 0.579 0.788 1.030 1.303 1.718 2.067 2.448 2.861 3.306 3.949 4.470
300 mm 0.266 0.416 0.599 0.816 1.065 1.348 1.777 2.138 2.532 2.959 3.420 4.086 4.624

Dimension Standard of Duplex 2205 Double Ended Threaded Rods

Thread d (M27) M30 (M33) M36 (M39) M42 (M45) M48 (M52)
  (M27x2) M30x2 (M33x2) M36x3 (M39x3) M42x3 (M45x3) M48x3 (M52x3)
b1 35 38 42 45 50 52 58 60 65
b2 l<125mm 60 66 72 78 84 90 96 102 110
b2 125>l<200mm 66 72 78 84 90 96 102 108 116
b2 l>200mm 79 85 91 97 103 109 115 121 129
x1 7,5 9 9 10 10 11 11 12,5 12,5
x2 3,8 4,5 4,5 5 5 5,5 5,5 6,3 6,3
l js 15 Weight (7,85/dm3) per 1000 units, in
  kg
50
55
60
70
75 430
80 452
85 475 591
90 497 619 776
95 520 646 810
100 542 674 843 1011
110 587 730 910 1091 1326
120 632 785 977 1171 1420 1647 1963
130 677 841 1045 1251 1514 1756 2088 2364
140 722 896 1112 1331 1607 1865 2213 2506 3027
150 767 952 1179 1411 1701 1973 2338 2648 3794
160 812 1007 1246 1490 1795 2082 2462 2790 3360
170 857 1062 1313 1570 1889 2191 2587 2932 3527
180 902 1118 1380 1650 1982 2300 2712 3074 3694
190 947 1173 1447 1730 2076 2408 2837 3216 3861
200 992 1229 1515 1810 2170 2517 2962 3358 4027
220 1082 1340 1649 1970 2358 2735 3211 3642 4361
240 1172 1450 1784 2130 2545 2952 3461 3927 4694
260 1262 1562 1918 2289 2733 3170 3711 4211 5028
280 1352 1672 2052 2449 2920 3387 3961 4495 5361
300   1784 2186 2609 3108 3605 4210 4779 5694
320     2321 2769 3295 3822 4460 5063 6028
340     2455 2929 3483 4040 4710 5347 6361
360       3088 3670 4257 4959 5631 6695
380         3858 4475 5209 5915 7028
400         4045 4692 5459 6199 7362

d M 5 M 6 M 8 M 10 M 12 M 16 M 20 M 24
b1 10 12 16 20 24 32 40 48
b2 16 18 22 26 30 38 46 54

Duplex Steel 2205 Double Ended Threaded Rods Size Chart

3/8″-16 x 1-1/2″ 3/8″-16 x 1-1/4″ 3/4″-10 x 3″
1/2″-13 x 3″ 1/2″-13 x 2-1/2″ 5/16″-18 x 1″
3/8″-16 x 1″ 5/8″-11 x 3″ 3/8″-16 x 3/4″
1/2″-13 x 1-1/2″ 1/2″-13 x 2″ 5/16″-18 x 1-1/4″
1/4″-20 x 1″ 3/8″-16 x 2″ 5/8″-11 x 4″
5/8″-11 x 2-1/2″ 3/8″-16 x 2-1/2″ 3/8″-16 x 3″
1/2″-13 x 1-1/4″ 3/4″-10 x 2-1/2″

Various Types of Duplex Steel 2205 Threaded Rods

Duplex Steel 2205 Full Threaded Rods

Duplex Steel 2205 Full Threaded Rod

  • 2205 Duplex Steel Full Threaded Rods
  • Duplex Steel 1.4462 Fully Threaded Bars
  • ASTM F593 2205 Duplex Steel Full Threaded Rods
  • ASTM F593 Duplex 2205 Fully Threaded Rod
  • Duplex Stainless Steel 2205 Full Threaded Rods
  • UNS S32205 Full Threaded Rods
  • DSS 2205 Full Threaded Rods
Duplex Steel 2205 Double Ended Threaded Rods

Duplex Steel 2205 Double Ended Threaded Rod

  • 2205 Duplex Steel Double Ended Threaded Rods
  • Duplex Steel 1.4462 Double End Threaded Bar
  • ASTM F593 2205 Duplex Steel Double Ended Threaded Rods
  • ASTM F593 Duplex 2205 Double-End Threaded Bars
  • Duplex Stainless Steel 2205 Double Ended Threaded Rods
  • UNS S32205 Double Ended Threaded Rods
  • DSS 2205 Double Ended Threaded Rods
Duplex Steel 2205 Partially Threaded Rods

Duplex Steel 2205 Partially Threaded Rod

  • 2205 Duplex Steel Partially Threaded Rods
  • Duplex Steel 1.4462 Partially Threaded Rod
  • ASTM F593 2205 Duplex Steel Partially Threaded Rods
  • ASTM F593 Duplex 2205 Partially Threaded Rods
  • Duplex Stainless Steel 2205 Partially Threaded Rods
  • UNS S32205 Partially Threaded Rods
  • Duplex 2205 Partially Threaded Rods

Contact us to get a quick quote for your requirement.

We offer These Duplex Steel 2205 Threaded Rods as per DIN, ISO, JIS or ANSI Standard.
